代理天钰FR9801降压转换器芯片

  • 型 号:FR9801
  • 价 格:0.01    品牌名:台湾天钰
  • 发布时间:2020-11-07
  • 数 量:900000
  • 发货地:福田区赛格广场38楼
  • 发货周期:1天
  • 联系人:郑琼锋
  • 联系电话:13528458039
  • 浏览量:
  • 公司名称:深圳市夸克微科技有限公司
产品详细介绍:

代理天钰FR9801降压转换器芯片

 Description



The FR9801 is a synchronous step-down DC/DC converter that provides wide 4.5V to 21V input voltage range and 2A continuous load current capability.

  The FR9801 fault protection includes cycle-by-cycle current limit, UVLO, output overvoltage protection and thermal shutdown. The adjustable soft-start function prevents inrush current at turn-on. This device uses current mode control scheme which provides fast transient response. Internal compensation function reduces external compensation components and simplifies the design  process. In shutdown mode, the supply current is less than 1μA.

  The FR9801 is available in SOT-23-6 package and provides good thermal conductance. Features

 High Efficiency up to 94%

 Low RDS(ON) Integrated Power MOSFET

 Internal Compensation Function

 Wide Input Voltage Range: 4.5V to 21V

 Adjustable Output Voltage from 0.8V to 17.85V

 2A Output Current

 Fixed 600KHz Switching Frequency

 Current Mode Operation

 Cycle-by-Cycle Current Limit

 Over-Temperature Protection with Auto Recovery

 Output Overvoltage Protection

 Under Voltage Lockout

 <1μA Shutdown Current

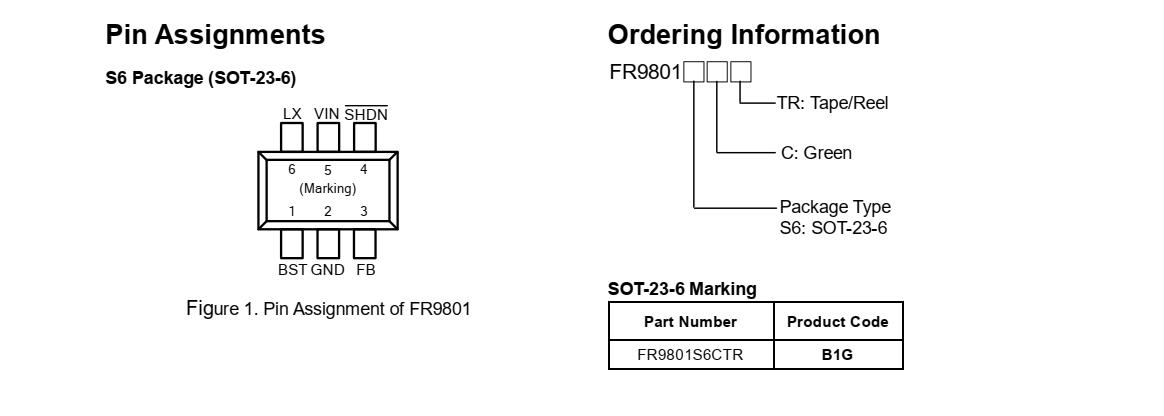

 SOT-23-6 Package Applications

 STB (Set-Top-Box)

 LCD Display, TV

 Distributed Power System

 Networking, XDSL Modem
