FR9889经典降压芯片,代理含税FR9889

  • 型 号:FR9889
  • 价 格:0.01    品牌名:台湾天钰
  • 发布时间:2020-11-06
  • 数 量:900000
  • 发货地:福田区赛格广场38楼
  • 发货周期:1天
  • 联系人:郑琼锋
  • 联系电话:13528458039
  • 浏览量:
  • 公司名称:深圳市夸克微科技有限公司
产品详细介绍:

FR9889经典降压芯片,代理含税FR9889


Description
  The FR9889 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 3A continuous load current capability. At light load condition, the FR9889 can operate at power saving mode to support high efficiency and reduce power lose.
  The FR9889 fault protection includes cycle-by-cycle current limit, UVLO, output overvoltage protection and thermal shutdown. The soft-start function prevents inrush current at turn-on. This device uses current mode control scheme which provides fast transient response. Internal compensation function reduces external compensation components and simplifies the design process. In shutdown mode, the supply current is about 1µA.
  The FR9889 is available in a SOP-8 exposed pad package, which provides good thermal conductance.
Features
 Low RDS(ON) Integrated Power MOSFET(120mΩ /100mΩ)
 Internal Compensation Function
 Internal Power Good Function
 Wide Input Voltage Range: 4.5V to 23V
 Adjustable Output Voltage Down to 0.925V
 3A Output Current
 340kHz Switching Frequency
 External Programmable Soft-Start or Internal 600µs Soft-Start
 Cycle-by-Cycle Current Limit
 Over-Temperature Protection with Auto Recovery
 OVP, UVLO
 Hiccup Short Circuit Protection

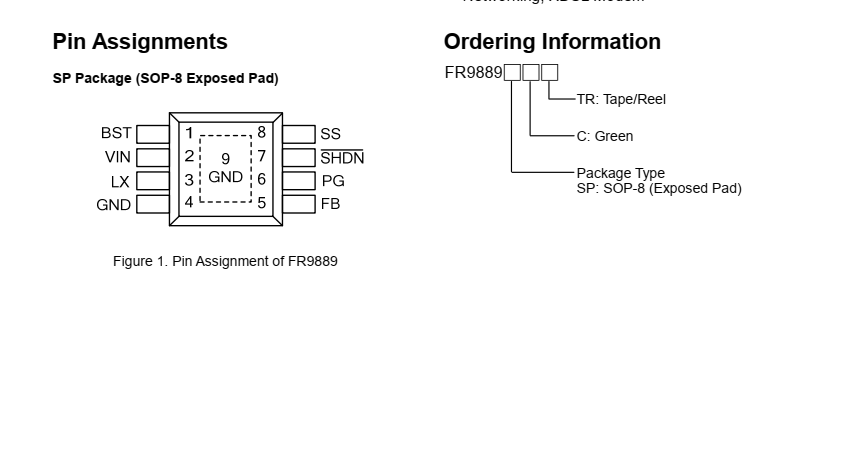

 SOP-8 Exposed Pad Package
Applications
 STB (Set-Top-Box)
 LCD Display, TV
 Distributed Power System
 Networking, XDSL Modem
