代理天钰FR9886降压转换器芯片,SOP8封装

  • 型 号:FR9886
  • 价 格:0.01    品牌名:台湾天钰
  • 发布时间:2020-11-07
  • 数 量:900000
  • 发货地:福田区赛格广场38楼
  • 发货周期:1天
  • 联系人:郑琼锋
  • 联系电话:13528458039
  • 浏览量:
  • 公司名称:深圳市夸克微科技有限公司
产品详细介绍:

代理天钰FR9886降压转换器芯片,SOP8封装

 Description



The FR9886 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 2.5A continuous load current capability.

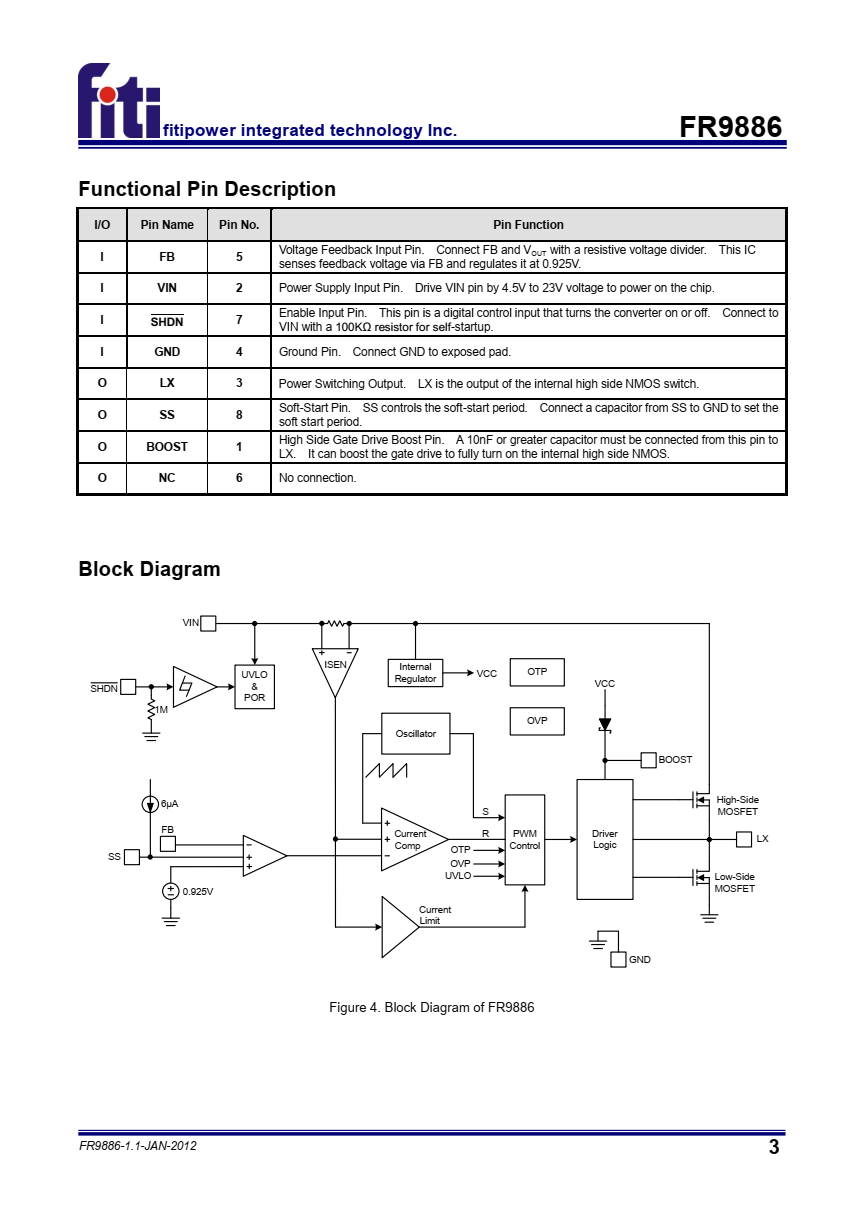

  The FR9886 fault protection includes cycle-by-cycle current limit, UVLO, output overvoltage protection and thermal shutdown. The adjustable soft-start function prevents inrush current at turn-on. This device uses current mode control scheme which provides fast transient response. Internal compensation function reduces external compensation components and simplifies the design process. In shutdown mode, the supply current is less than 1μA.

  The FR9886 is available in a SOP-8/SOP-8 exposed pad package, and provides good thermal conductance.  Features

● High Efficiency up to 96%

● Low Rds(on) Integrated Power MOSFET

● Internal Compensation Function

● Wide Input Voltage Range: 4.5V to 23V

● Adjustable Output Voltage from 0.925V to 20V

● 2.5A Output Current

● Fixed 340KHz Switching Frequency

● Current Mode Operation

● Adjustable Soft-Start

● Cycle-by-Cycle Current Limit

● Over-Temperature Protection with Auto Recovery

● Output Overvoltage Protection

● Under Voltage Lockout

● <1μA Shutdown Current

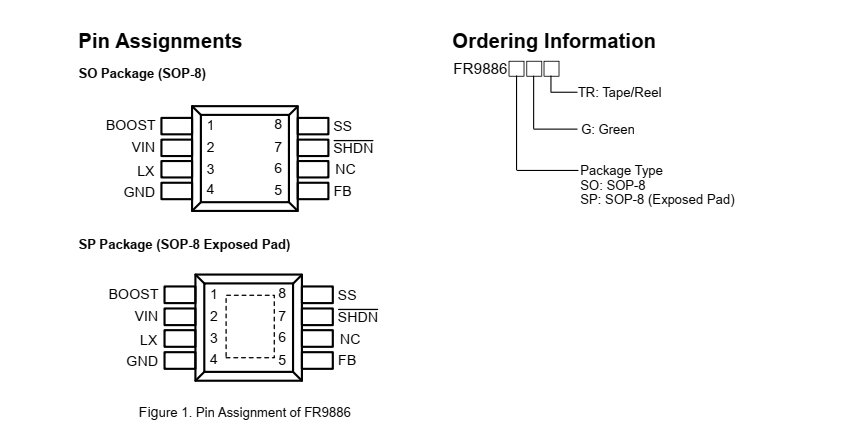

● SOP-8 and SOP-8 Exposed Pad Packages  Applications

● STB (Set-Top-Box)

● LCD Display, TV

● Distributed Power System

● Networking, XDSL Modem
